DHR180UC

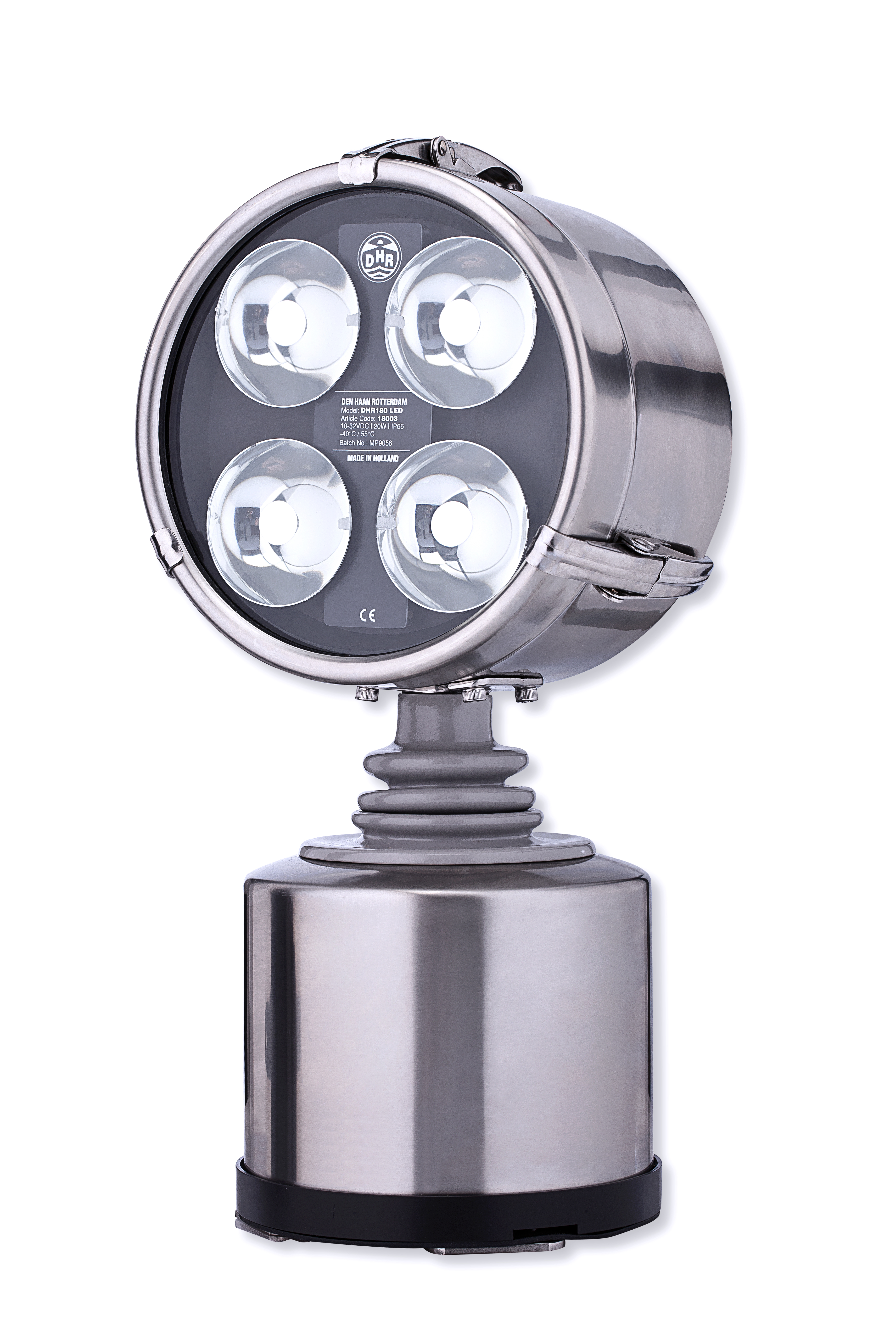

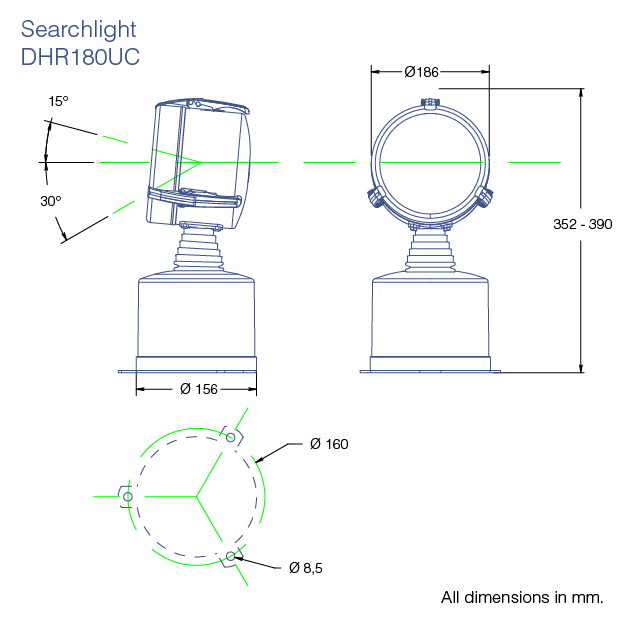

The DHR180Searchlight is the most compact searchlight manufactured by DHR. Made of brushed 316L stainless steel with a 10V - 32V LED insert and a clear white beam. The Control panel is used for operation from the wheelhouse. Because of its relatively small size it is very suitable for vessel low in height.
 | Excellent optics |  | Robust design |
 | Narrow beam |  | No noise interference |
Recently viewed
Materials
Brushed stainless steel 316 housing
All other materials are corrosion resistant and non-magnetic
Stainless steel 316 motor housing with black POM base
Weight
4.2 Kg
Optics
Sealed beam reflector
Protection class
IP65
Only suitable for inland navigation
Electric drive
Motors 4-10VDC / 6W
Pan 380°, Speed 32° p/s
Tilt -32° / +15°, Speed 5° p/s

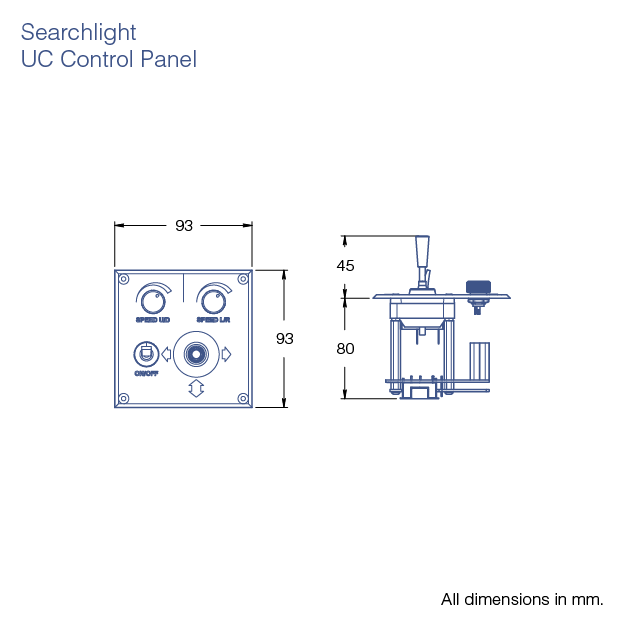

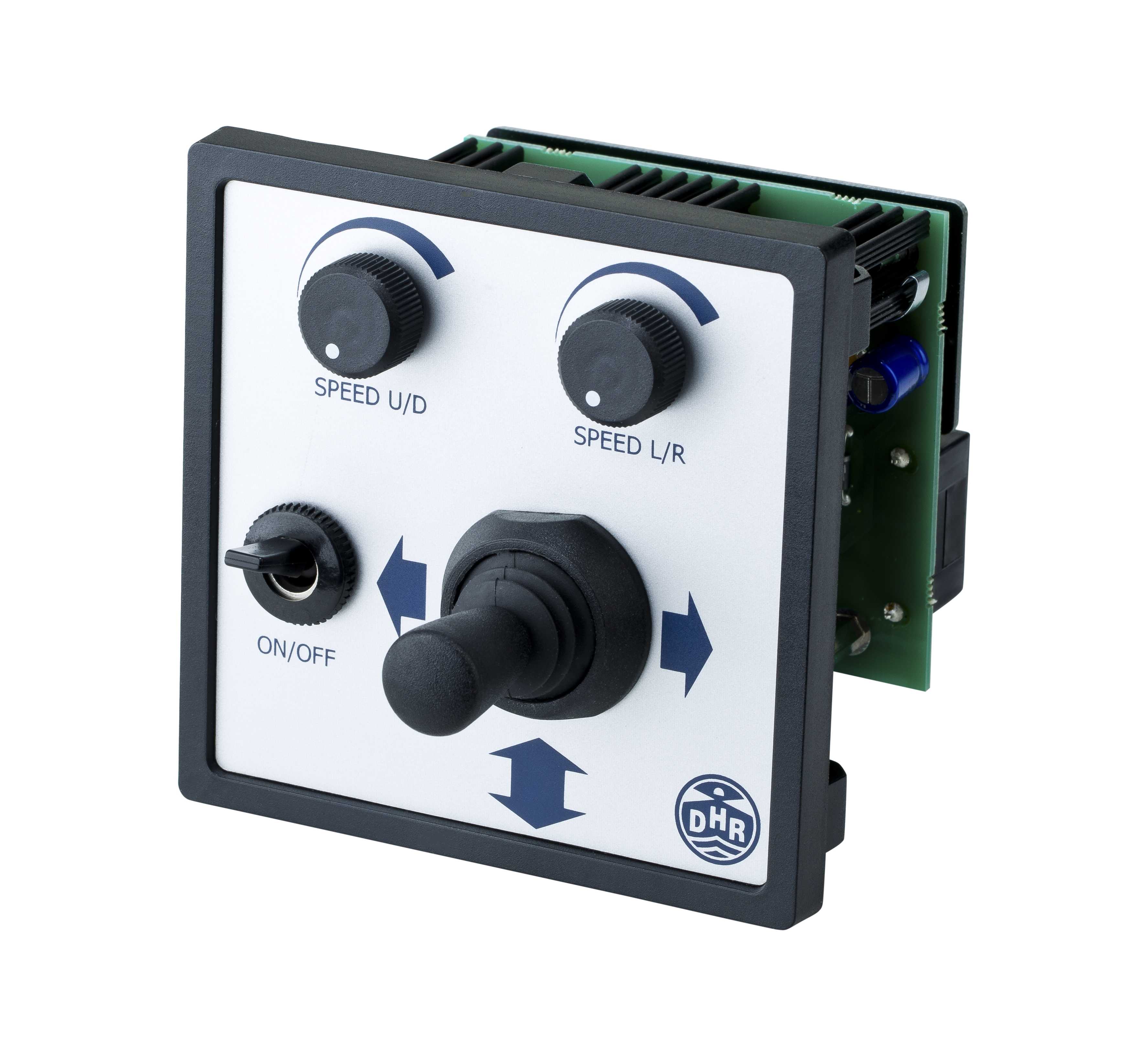

Control panel functions
On/off switch of the light source
Step-less speed control
Control panel supply voltage
12-24VDC
|
Model |
Voltage |
Lamp base |
Power |
Range at 1 Lux |
Divergency at 50% |
Light intensity |
Article number |
|
Remote control without panel |
10-32VDC |
Click-on terminal |
To be advised |
To be advised |
To be advised |
To be advised |
180UC-LED |
|
|
