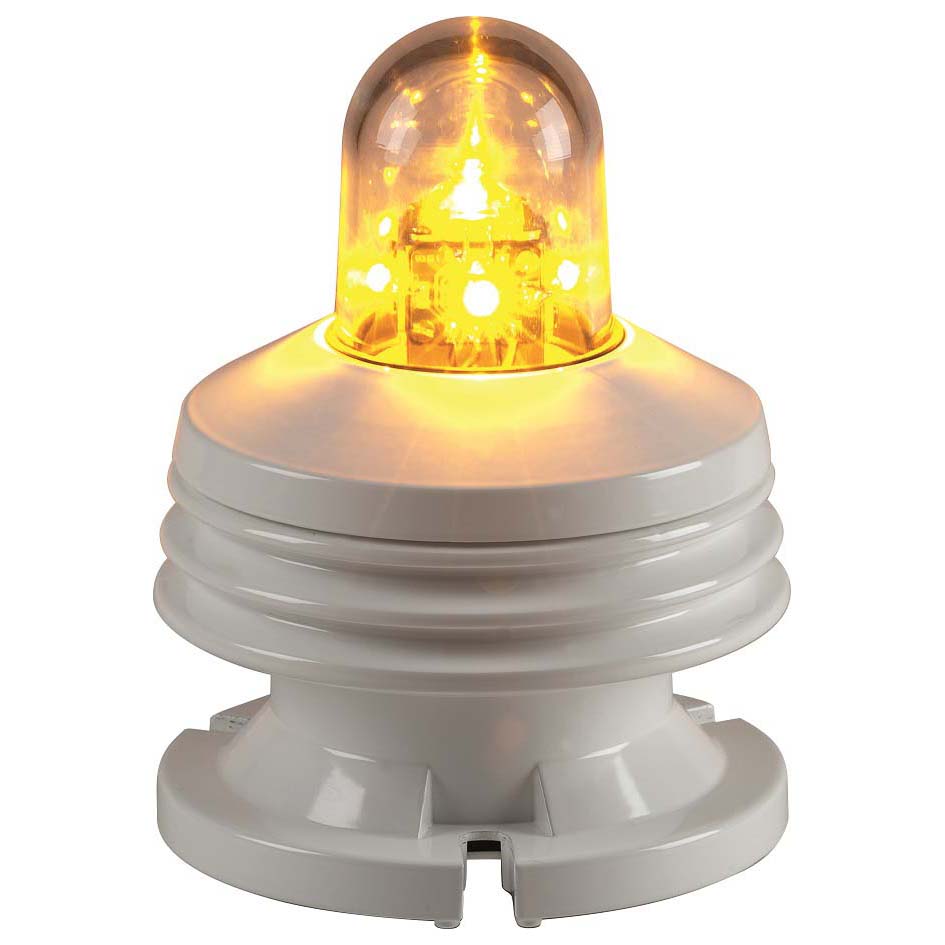

DHR73LED

The DHR73 LED is a unique signalling light. it's multifunctional power supply can be connected to voltages ranging from 90 to 265VAC or 24VDC. Another distinctive feature is the possability to configure the characteristics of the emitted light: continious or four different flashing frequencies. The combination of these features makes the DHR73 extremely versatile. The use of automotive LEDS and high quality components assures a lifetime of approximately 50.000 hours.

Quote


	Waterproof IP66		Maintenance friendly
	Adjustable frequency		Adjustable power input

Recently viewed

Application
-For ships carrying dangerous cargo
-Ships larger than 200 meters
-Hovercrafts
-Submarines
-Fishing vessels
-Vessels of official guards
-Fire fighting vessels
-Vessels carrying out work
-General signalling purposes

Materials
-Chromated seawater resistant aluminium with a powdercoated finish
-POM insulation sleeves to prevent galvanic corrosion
-Borosilicate well glass
-Epoxy potted Led driver for maximum protection

Lifetime
50.000 hours

Visibility
2 to 5 N.M.

Operating temperature
-25 to 55°C

Protection class
IP66

Wiring
Cable gland M25x1,5

Power supply
Dual, 90 up to 230VAC and 24VDC±20%

Dip-switch adjustable signal frequency
30, 60, 120 or 180 flashes per minute or continuously burning

Available models DHR73LED

Color	Min. visibility	Power	Article code
White	3 N.M.	7,5-12W	73.06.00.00
Red	3 N.M.	7,5-12W	73.07.00.00
Green	3 N.M.	7,5-12W	73.08.00.00
Yellow	3 N.M.	7,5-12W	73.09.00.00
Blue	2 N.M.	7,5-12W	73.10.00.00


Information leaflet DHR73LED	Manual DHR73LED
